    Diesel Generator Yuchai 450KW/562KVA 50HZ 1500RPM Diesel Generator Set For Home

    Ask Lasest Price
    Brand Name : AIKE POWER
    Model Number : AY625
    Certification : ISO,OEM
    Price : USD
    Supply Ability : 20 set/m
    Delivery Time : 30-45days
    • Product Details
    • Company Profile

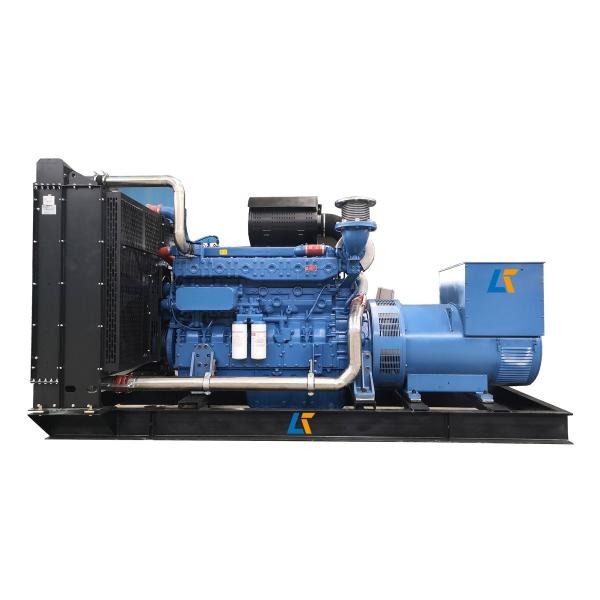

    Diesel Generator Yuchai 450KW/562KVA 50HZ 1500RPM Diesel Generator Set For Home

    Power Diesel Generator , 450kw Diesel Generator , Quiet Diesel Generator


    Yuchai power generator set with high voltage YC6TD780-D30

    50HZ/1500RPM,380/220V,400/230V,415/240V can be adjustable, Open Type, weatherproof type or soundproof type, trailer type and so on.

    Also have 60HZ/1800RPM,voltage is 220/127V,380/220V,440/254V can be option


    ATS can be option,there are ABB,Schneider Electric,SOCOMEC&Delixi brand.


    Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China


    Generator Standard Compose:

    • Yuchai Engine, model
    • Meet the environmental temperature 40 ℃ water tank radiator, Driving belt cooling fans, with fan safety shield
    • 24 V charging generators
    • Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree
    • Shock absorber
    • Dry air filter, Fuel filter, Oil filter
    • Power output circuit breaker
    • Standard control panel
    • 12 V battery and battery connection cables
    • Battery Charger
    • Exhaust pipe, Bellows, Flange, Muffler set
    • 8 hours’ base tank
    • Documents and Manuals
    Generator setGenset ModelAY625
    Rating Power (KW/KVA)450/562
    Standby Power(KW/KVA)500/625
    Rating Ammeter(A)816
    Diesel engineGeneral dataEngine modelYC6TD780-D30
    Prime Power(KW/KVA)356/445
    Standby Power(KW/KVA)382/478
    number of Cylinder & Configuration6 cylinders in line
    Bore X Stroke (mm)152*180
    Displacement(l)19.598
    Compression Ratio14:1
    Governor typeElectric start
    Rated RPM1500
    Exhaust systemExhaust gas flow(m³/min)33
    Max. Exhaust Gas Temperature(℃)550
    Max. Exhaust back Pressure(KPA)10
    Air intake systemAspiration TypeTurbocharged intercoolant
    Max. intake depression(KPA)12
    Combustion air Volume(m³/min)33
    Fuel systemRating Fuel Consumption(l/h)117
    75% full Fuel Consumption(l/h)87.75
    Lubrication systemTotal oil capacity(l)21
    Max permissible oil temp(℃)97
    Oil pressure at rated rpm(KPA)345-413
    Cooling systemTotal Coolant capacity(l)10
    Max. temperature of coolant(℃)550
    Fan cooling air flow(m³/min)125
    AlternatorAlternator modelHCI544E
    Rating Voltage(V)400/230
    Rating Capacity(KW/KVA)16/20
    Eff.%87.5%
    Power Factor0.8
    Exciting typeBrushless self-exciter, AVR
    Voltage regulation±0.5%
    No. of Phase3 phase 4 wire
    Enclosure ClassIP23
    Class of InsulationH
    BatteryRating Capacity(AH)2X80AH 12V
    DimensionGenerator set dimension (LXWXH)3303x1500x2000
    WeightGenerator set Net Weight (kg)4130

    FAQ
    Q: Do you offer OEM service?
    A: Yes
    Q: What is your payment term?
    A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
    Q: What is your lead time?
    A: About 15-25 days after receiving advance deposit or original L/C.
    Q: What certificates do you have?
    A: We have ISO And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
    Q: What warranty do you provide?
    A: One year or 1200hours’ running whichever occurs first, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
